Keestrack Mobile Equipment

About Keestrack

Making its official start in 1996, Keestrack was founded by Kees Hoogendoorn with an ambitious idea, to mount a directly fed scalping screen on tracks. Until then, the idea of serious mobile equipment was unheard of, let alone a machine a quarry would use.

The success of this invention changed the industry and now mobile scalping screens are an industry norm, with every major manufacturer taking a queue from Keestrack's initial design. The mobile scalping screen plant has improved the operational efficiency of quarries and contractors the world over due to its versatility as a pre-screen, fines post-screen and the ability to handle the largest of rock down to pebble.

Keestrack's history of innovation doesn't end with the mobile scalper, since 1996 the company has also brought forth some of the most advanced mobile HSI impact crushers, defining the field of impactors for use as primary crushers in quarries, replacing a jaw and cone in a traditional configuration.

In 2010 Keestrack acquired OM, and added a full suite of jaw crushers to the range. OM's jaw technology enabled Keestrack to produce single toggle mobile jaw crushers that had full hydraulic adjustability on the fly without the use of wedges that are still common today.

In 2018 the R3e was awarded the prestigious Red Dot design award, a first for mobile quarrying equipment, and solidifying Keestrack as a leading manufacturer of sustainable crushing and screening plant. Since bringing the R3e to market, they've continued to roll out their full-electric 'e' platform to the rest of their range of crushers, screens and stackers.

Even with the modernisation of equipment and technology some things at Keestrack haven't changed. Building superior crushing and screening equipment has been their foremost endeavour, not volume; as such all equipment and their subsequent parts are manufactured by Keestrack, not outsourced or rebranded.

Ensuring innovation and quality has been what makes Keestrack machines the highest performing in the industry and highly suitable to New Zealand's demanding environment of performance and mobility.

Innovations and unique solutions

Keestrack's core focus is on superior engineering and build quality, which is reflected in the common feature sets found in their equipment.

All Keestrack Diesel-Hydraulic mobile machines integrate their signature Load Sensing Pump Technology. Whilst traditional mobile plant use gear pumps and restrictors, Keestrack's Load Sensing Pumps do just as the name says, they sense how much fluid is needed to run the plant to what the operator has configured.

Compared to the aforementioned gear pumps, Load Sensing Pumps save businesses up to 25% on their Diesel Burn, a significant economic and environmental saving, best yet their just as reliable as the traditional gear pump and have reduced wear as hydraulic componentry is not oversupplied.

Load sensing pumps

Keestrack is one of the foremost leaders in Quarry equipment electrification. Their E-Series equipment features an all-electric drive system and an integrated Diesel Generator for off the grid running.

By utilising E-Motors over traditional hydraulic motors and engine direct drives, E-Series machines have higher output power with less energy consumption in addition to a longer operational life span.

The E-Series onboard Diesel Genset provides the necessary power to run the machine off the main grid and delivers a 50% fuel saving compared to the equivalent Diesel-Hydraulic machine, as an all-electric drive system is more efficient resulting in less generated energy being lost.

When set up via 3-phase grid connection E-Series machines reach another level of cost and carbon reduction. Powered directly from the grid the energy cost is 70% less than the equivalent Diesel-Hydraulic machine, and the equipment carbon footprint is further reduced to that of the grid.

E-Series Machines

Keestrack's Wireless Remote offers more than just a convenient way to start and stop the machine, it's a fully-featured platform giving operators full control of the machines and its functions from the comfort and safety of the cab.

The Wireless Remote enables start and stop, tracking,and adjustment of machine-specific parameters like C.S.S on a Jaw and Aprons onan Impactor. It also includes an emergency stop switch, making it an extension of the machine's safety systems.

The Wireless Remote has 2-way communication with the plant, enabling the remote to display the machines current configuration and what the operator is adjusting.

Like your cellphone, the Wireless Remote is USB rechargeable and is securely paired with the machine. Built from a weather-sealed polycarbonate hardshell it also incorporates a rubberised grip for impact protection.

Wireless Remote Control

The Keestrack-er Remote Telematics System is an advanced monitoring system that allows monitoring and remote adjustment of any PLC monitored components.

The PLC is connected to a cellular telematics modem, the unit stores and transmits the data to the Keestrack-er cloud, where the owner or service agent can access the telemetry.

If an area with no signal the telematics unit will upload the stored data once back in range. Keestrack-er offers some distinct advantages for fleet management. Allowing managers to see where the equipment is positioned on the site via a map overlay and how productive the mobile plant has been.

Metrics like fuel usage, engine load, crushing/screening parameters, conveyor parameters are all monitored and recorded, allowing managers to see real-time and historical data.

In addition to tracking a mobile plants productivity, the Keestrack-er Telematics System enables equipment to be remotely diagnosed and adjusted by Equip2, helping solve production issues using data.

Keestrack-er Remote Monitoring

Keestrack

 Products

Category
Type
Reset
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
Keestrack B7e

Jaw Crushers

Keestrack B7e

Capacity: up to 600 TPH
Capacity: up to 600 TPH
C.S.S Range: 75 - 140 mm
C.S.S Range: 75 - 140 mm
Hopper Size: 6 m³
Hopper Size: 6 m³
Weight: 69.1 t
Weight: 69.1 t

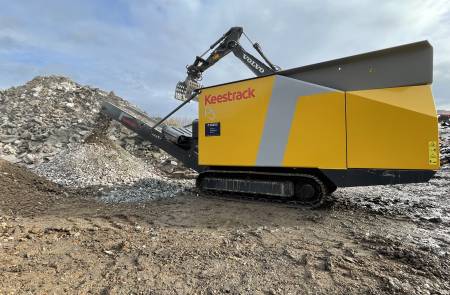

Keestrack P3 Shredder

Shredders

Keestrack P3 Shredder

Weight: 16,500kg
Weight: 16,500kg
Keestrack I4e

Impact Crushers

Keestrack I4e

Capacity: up to 250 TPH
Capacity: up to 250 TPH
C.S.S RANGE: 20-200MM
C.S.S RANGE: 20-200MM
Silo Capacity: 6.5 m³
Silo Capacity: 6.5 m³
Weight: 37,200kg
Weight: 37,200kg

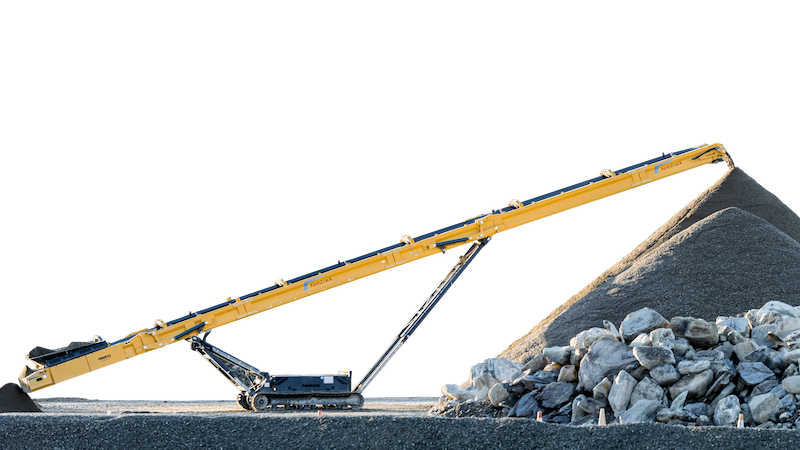

Keestrack S5

Stackers

Keestrack S5

Capacity: up to 200 TPH
Capacity: up to 200 TPH
Stacking Height:
Stacking Height:
Weight: 12,200kg
Weight: 12,200kg

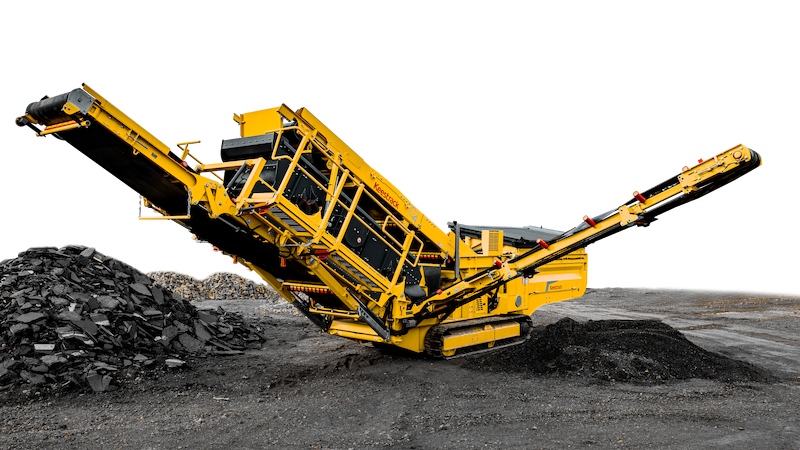

Keestrack C4

Classifier Screens

Keestrack C4

Capacity: up to 400 TPH
Capacity: up to 400 TPH
Screen Area: 16.2m2
Screen Area: 16.2m2
Hopper: 8m3
Hopper: 8m3
Weight: 25,000kg
Weight: 25,000kg

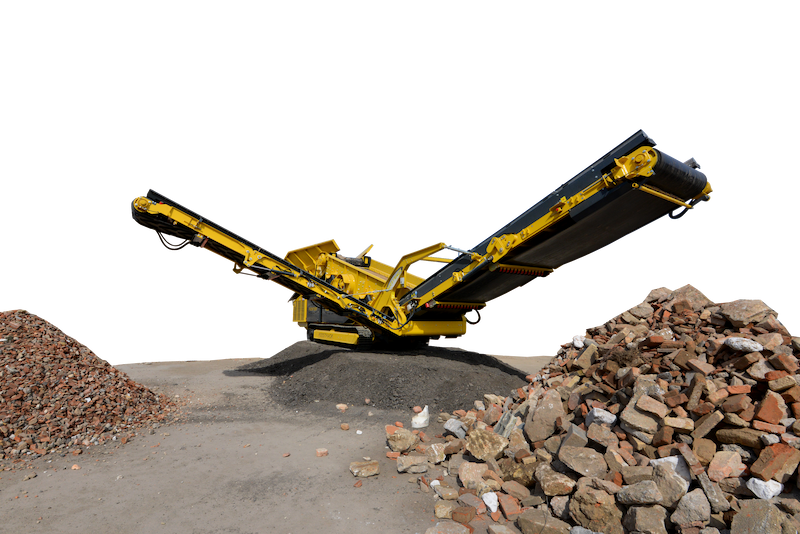

Keestrack K6

Scalping Screens

Keestrack K6

Capacity: up to 600 TPH
Capacity: up to 600 TPH
Screen Area: 16.2m2
Screen Area: 16.2m2
Hopper: 8m3
Hopper: 8m3
Weight: 33,000kg
Weight: 33,000kg

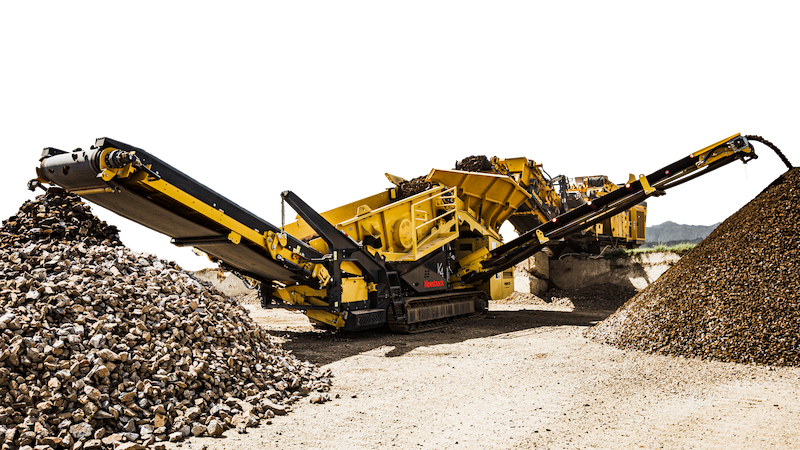

Keestrack K4

Scalping Screens

Keestrack K4

Capacity: up to 350 TPH
Capacity: up to 350 TPH
Screen Area: 12.6m2
Screen Area: 12.6m2
Hopper: 7m3
Hopper: 7m3
Weight: 26,500kg
Weight: 26,500kg

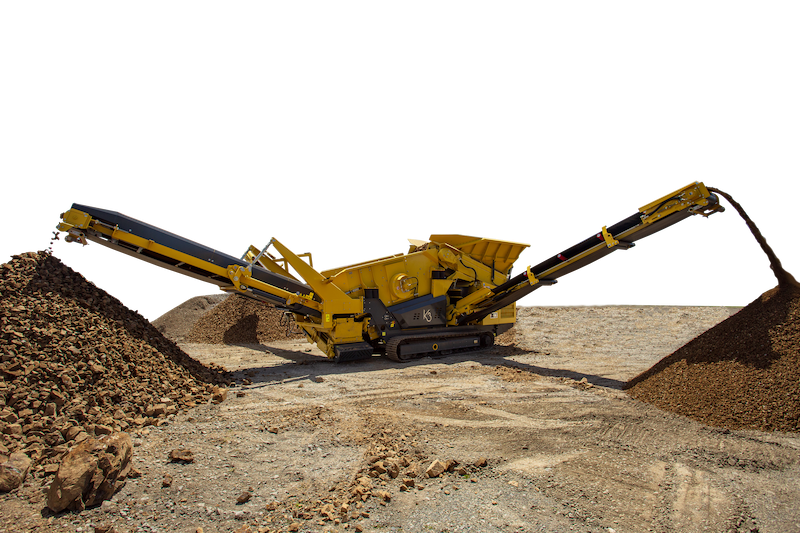

Keestrack K3

Scalping Screens

Keestrack K3

Capacity: up to 250TPH
Capacity: up to 250TPH
Screen Area: 6.5m2
Screen Area: 6.5m2
Hopper: 3.5m3
Hopper: 3.5m3
Weight: 18,800kg
Weight: 18,800kg
Keestrack H4e

Cone Crushers

Keestrack H4e

Capacity: up to 208 TPH
Capacity: up to 208 TPH
C.S.S Range: 6-185mm
C.S.S Range: 6-185mm
Post-Screen: 16.2m2
Post-Screen: 16.2m2
Weight: 45,515kg
Weight: 45,515kg
Keestrack B4e

Jaw Crushers

Keestrack B4e

Capacity: up to 400 TPH
Capacity: up to 400 TPH
C.S.S Range: 45-160mm
C.S.S Range: 45-160mm
Hopper: 5m3
Hopper: 5m3
Weight: 46,000kg
Weight: 46,000kg

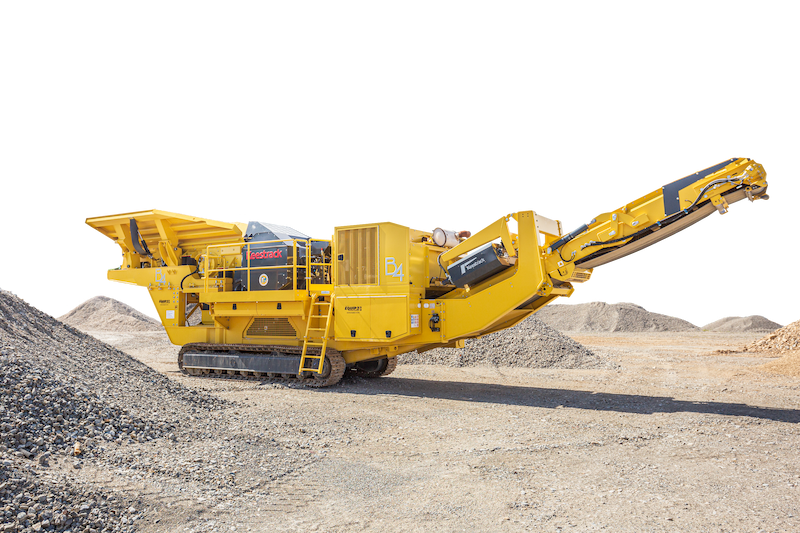

Keestrack B4

Jaw Crushers

Keestrack B4

Capacity: up to 400 TPH
Capacity: up to 400 TPH
C.S.S Range: 45-160mm
C.S.S Range: 45-160mm
Hopper: 5m3
Hopper: 5m3
Weight: 46,000kg
Weight: 46,000kg

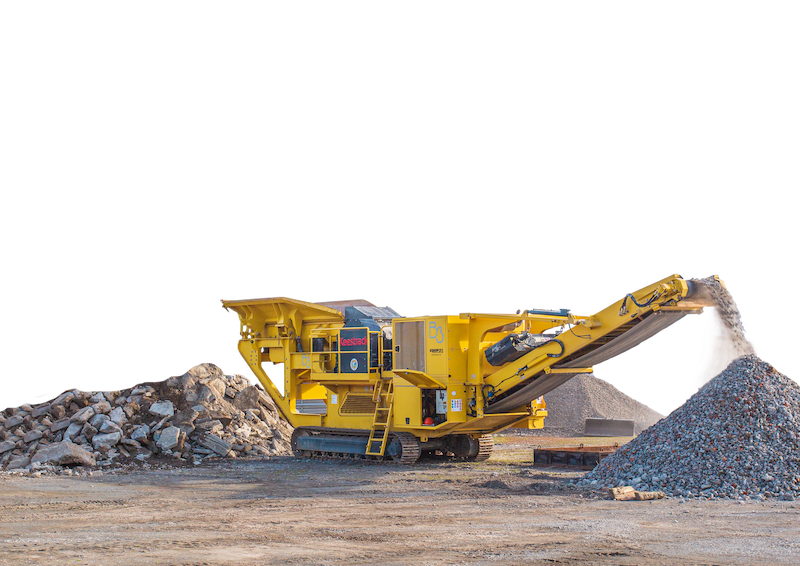

Keestrack B3

Jaw Crushers

Keestrack B3

Capacity: up to 250 TPH
Capacity: up to 250 TPH
C.S.S Range: 45-160mm
C.S.S Range: 45-160mm
Hopper: 4m3
Hopper: 4m3
Weight: 30,640kg
Weight: 30,640kg

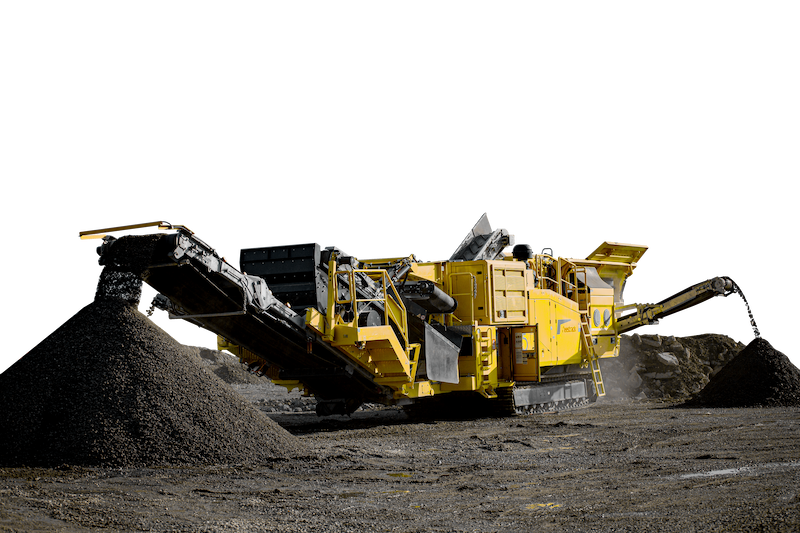

Keestrack R5

Impact Crushers

Keestrack R5

Capacity: up to 350 TPH
Capacity: up to 350 TPH
C.S.S Range: 20-200mm
C.S.S Range: 20-200mm
Post-Screen: 10m2
Post-Screen: 10m2
Weight: 48,350kg
Weight: 48,350kg
Keestrack R3e

Impact Crushers

Keestrack R3e

Capacity: up to 250 TPH
Capacity: up to 250 TPH
C.S.S Range: 20-200mm
C.S.S Range: 20-200mm
Post-Screen: 5m2
Post-Screen: 5m2
Weight: 30,200kg
Weight: 30,200kg

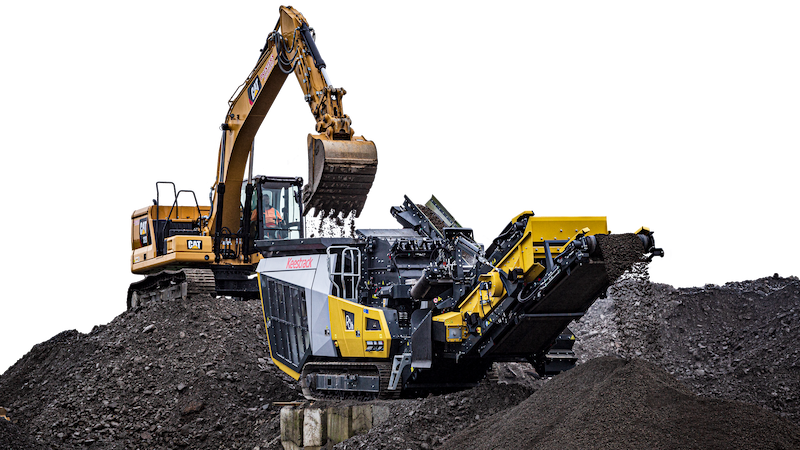

Keestrack R3

Impact Crushers

Keestrack R3

Capacity: up to 250 TPH
Capacity: up to 250 TPH
C.S.S Range: 20-200mm
C.S.S Range: 20-200mm
Post-Screen: 5m2
Post-Screen: 5m2
Weight: 30,200kg
Weight: 30,200kg
